Size and FitGeneralElectronicComponents

Content 1

Specifications
[A] Max. Ebike Height	1135mm/44.7inch
[B] Max. Frame Height	880mm/34.6inch
[C] Bottom Bracket Height	400mm/15.7inch
[D] Frame Size	550mm/21.7inch
[E] Standover Height	500mm/19.7inch
[F] Rear Seat Height	860mm/33.9inch
[I]Seat length	630mm/24.8inch
[K] Wheelbase Length	1200mm/47.2inch
[L] Total Length	1730mm/68.1inch
[J]Riding Position	795mm/31.3inch

Content 2

Range

Accelerator: 90km/56miles
Assist: 150km/93miles

Speed

Default: 25kmh/15.5mph
Release: 50kmh/31mph

Pedal Assist

5 levels

Suspension

Front Spring Fork&Rear Suspension

Transmission

7 Speeds

Tires

Kenda 20'*4.0'

Folding parts

Rear Footrest

Bike Weight

42kg / 92.5lbs

Weight Capacity

180kg / 396lbs

Rider Height

160-200CM
62 - 78.7inc

Content 3

Motor

1000w,48V Brushless Rear Hub Motor

Maximum Torque

50N.M

Battery

Lithium-ion 48V, 20Ah

Charger

54.6V 2AH Charger, 6-7 Hours Charging

Display

LCD Smart Easy Read Display, Colorful screen

Content 4

Frame

Aluminum alloy

Handlebars

Aluminum 22.2mm, 700mm

Fork

Spring suspension

Brakes

Hydraulic Disc Brakes

Horn / Bell

Horn

Wheels

Aluminum 36h Front & Rear

Headlight

LED Light

TailLight

Brake Light

Chain Ring

130-link 1/2 X 3/32

Pedals

Platform Pedals

Seat

Dual Leather Seats

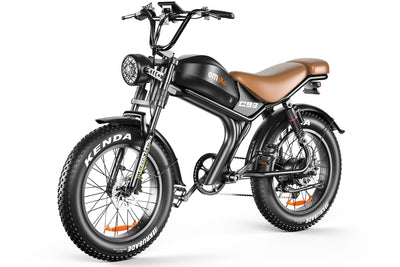

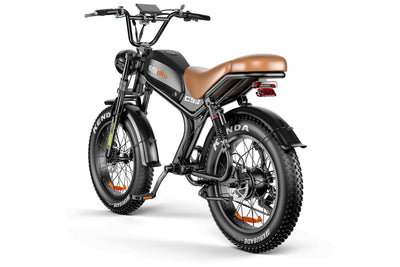

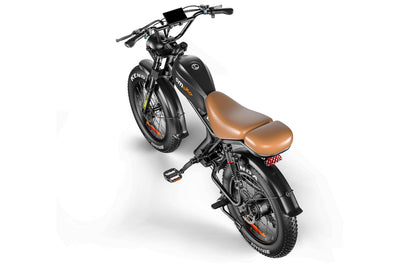

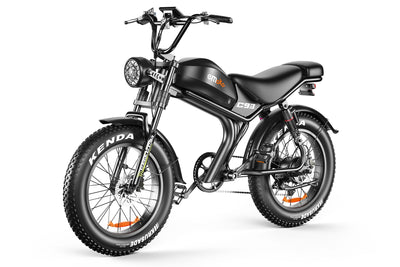

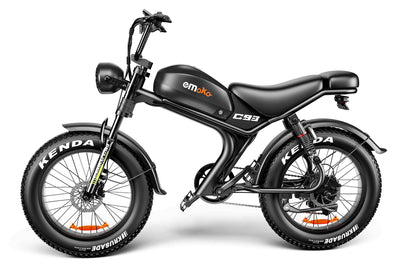

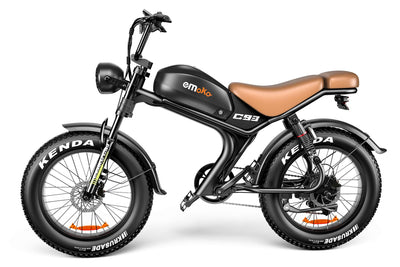

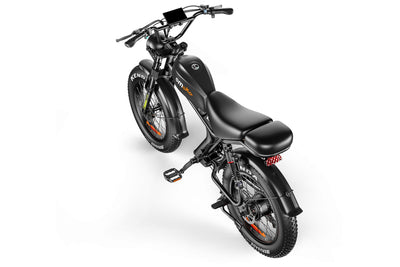

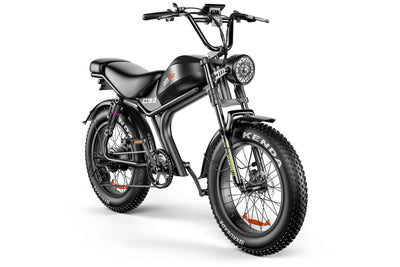

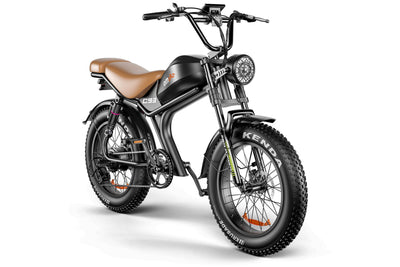

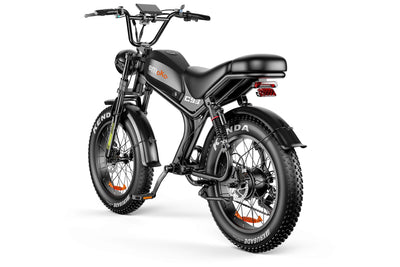

Emoko C93 48V Fast Moped-style Ebike Fat Tire 1000w Motor for adults
